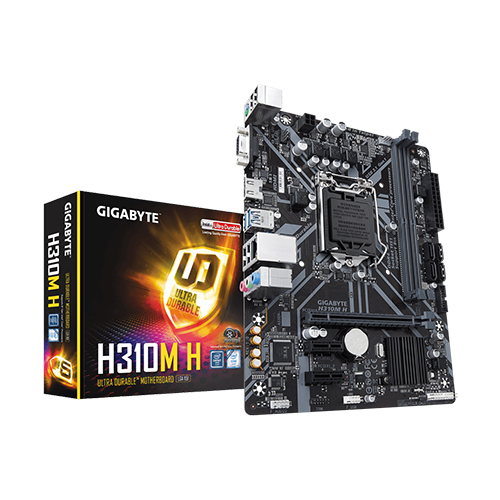

Gigabyte H310M H 8th Gen Micro ATX Motherboard
৳ 0
- Chipset: Intel H310 Express
- Intel Socket 1151 for 8th Gen Core Processors
- 2 x DIMM, Max. 32GB DDR4
- 3 x PCIe slot
Call For Price
Gigabyte H310M H Motherboard
| Basic Information | ||
| Supported CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
|
| Chipset | Intel® H310 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
| Graphics Slot | D-Sub HDMI |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM sockets | |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
|
| Maximum Memory | 32 GB | |
| Graphics | ||
| Integrated Graphics | Integrated Graphics Processor-Intel® HD Graphics | |
| Supported Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
|
| Max Shared Memory | 1 GB | |
Connector & Ports |
||
| HDMI | 1 x HDMI port | |
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 4 x SATA 6Gb/s connectors | |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
| Internal I/O Ports | 24-pin ATX main power connector 4-pin ATX 12V power connector SATA 6Gb/s connectors CPU fan header system fan header front panel header front panel audio header USB 3.1 Gen 1 header USB 2.0/1.1 headers Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) Clear CMOS jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Description
Gigabyte H310M H Motherboard
Gigabyte H310M H 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 8-Channel HD Audio with High Quality Audio Capacitor board has dual channel DDR4 maximum 32GB memory and it has the capability of Ultra-Fast SATA 6Gb/s connectors and USB 3.1 Gen 1 interface. If we consider the graphics of this Anti-Sulfur Resistors Design board supports Intel HD graphics having the maximum resolution of 4096×2160@30 Hz for HDMI and 1920×1200@60 Hz for D-Sub port. This High Quality Audio Capacitors and Audio board has 3 x PCIe slot, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP and all new GIGABYTE™ APP Center which is simple and easy use.
| Brand | Gigabyte |
|---|---|
| Processor Brand | INTEL |
| Generation | 8th Gen |
| RAM Type | DDR4 |
| Bus Speed | 2133 MHz, 2400 MHz, 2666 MHz |
| RAM Slot | 2 |
| HDMI Port | YES |
What is the price of Gigabyte H310M H 8th Gen Micro ATX Motherboard in Bangladesh?
The latest price of Gigabyte H310M H 8th Gen Micro ATX Motherboard in Bangladesh is .00৳. You can buy the Gigabyte H310M H 8th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.
