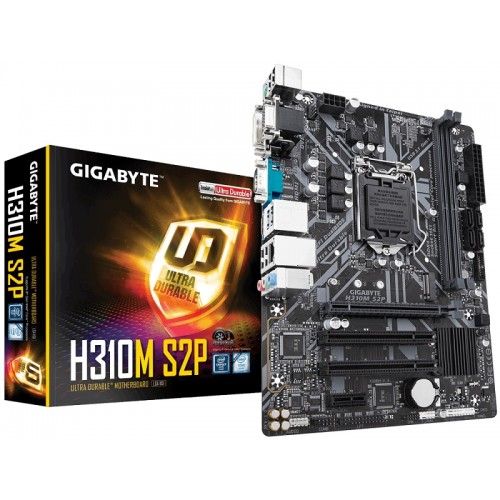

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
৳ 0
- Model: H310M S2P
- Chipset: Intel H310 Express
- Intel Socket 1151 for 8th Gen Core Processors
- 2 x DIMM, Max. 32GB DDR4
- 2 x PCIe & 2 x PCI slots
Call For Price
Specification
| Basic Information | ||
| Supported CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE’s website for the latest CPU support
L3 cache varies with CPU |
|
| Chipset | Intel® H310 Express Chipset | |
| BIOS | 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM sockets | |
| Supported Memory | DDR4 2666/2400/2133 MHz memory modules
ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 32 GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
|
| Max Shared Memory | 1 GB | |
Connector & Ports |
||
| HDMI | 1 x HDMI port | |
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors |
|
| Audio | Realtek® ALC887 codec
High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
| Internal I/O Ports | 24-pin ATX main power connector
8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector CPU fan header system fan header front panel header front panel audio header USB 3.1 Gen 1 header USB 2.0/1.1 header Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) serial port header parallel port header Clear CMOS jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Gigabyte H310M S2P Motherboard
Gigabyte H310M S2P 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 8-Channel HD Audio with High Quality Audio Capacitor board has dual channel DDR4 maximum 32GB memory and it has the capability of Ultra-Fast M.2 with PCIe Gen2 X2 & SATA and USB 3.1 Gen 1 interface. If we consider the graphics of this Anti-Sulfur Resistors Design board supports Intel HD graphics having the maximum resolution of 4096×2160@30 Hz for HDMI and 1920×1200@60 Hz for D-Sub & DVI-D port. This High Quality board has 2 x PCIe & 2 x PCI slots, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, GIGABYTE UEFI DualBIOS™ and CEC 2019 Ready.
Gigabyte H310M S2P latest 8th gen mainboard with Intel H310 Express chipset is a great choice for your desktop setup and have the best price in Chattagram, Rangpur, Dhaka, Khulna & Sylhet. Order your PC components from Star Tech online shop and have the delivery at any place in Bangladesh.
| Brand | Gigabyte |
|---|---|
| Processor Brand | INTEL |
| Generation | 8th Gen |
| RAM Type | DDR4 |
| Bus Speed | 2133 MHz, 2400 MHz, 2666 MHz |
| RAM Slot | 2 |
| M.2/NVMe Expention slot | 1 |
| HDMI Port | YES |
What is the price of Gigabyte H310M S2P 8th Gen Micro ATX Motherboard in Bangladesh?
The latest price of Gigabyte H310M S2P 8th Gen Micro ATX Motherboard in Bangladesh is .00৳. You can buy the Gigabyte H310M S2P 8th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.
