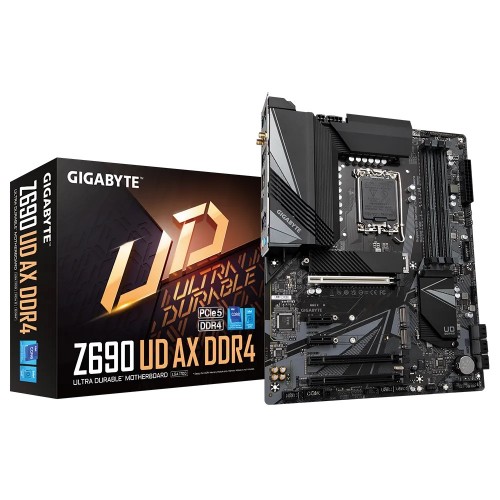

Gigabyte Z690 UD DDR4 Ultra Durable Motherboard
৳ 0
- Brand-Gigabyte
- Model-Gigabyte Z690
- Chipset-Intel Z690
- Memory-128GB DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Storage-6.0Gb/s
- Graphics-Intel HD Graphics
Call For Price
Specification
Gigabyte Z690 UD Motherboard
| General | |
| Brand | Gigabyte |
| Model | Gigabyte Z690 |
| CPU | |
| Chipset Brand | Intel |
| Chipset | Intel Z690 |
| Supported CPU | Core i9, i7, i5, L3 cache varies with CPU |
| Generation | 12th |
| Memory Support | |
| Memory Type | DDR4 |
| Memory MHz | 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Memory Slot | 4 |
| Memory Channel | Dual |
| Memory Max | 128GB (32 GB single DIMM capacity) |
| Storage | |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards |
| Graphics | |
| Graphics | Intel HD Graphics |
| PCI Express Slot | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio & Video | |
| Audio | 1 x front panel audio header |
| Network & Connectivity | |
| LAN Chipset | Realtek 2.5GbE LAN chip |
| LAN Speed (Mbps) | (2.5 Gbps/1 Gbps/100 Mbps) |
| Ports | |
| USB Ports | 1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers |
| SATA Port | 6 |
| Thunderbolt | 1 x Thunderbolt add-in card Connector |
| TPM Port | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Technical Information | |
| RGB Support | Yes |
| RGB Connector | 2 x RGB LED strip headers |
| RGB Sync | Polychrome SYNC |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Bios Information | |
| BIOS Type | 1 x 256 Mb flash |
| BIOS Model | AMI UEFI BIOS |
| BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software | |
| Supported Operating System | Windows 10 |
| Warranty | |
| Warranty | 3 years |
Description
Gigabyte Z690 UD Motherboard
Gigabyte Z690 UD Motherboard. The Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard is featured with Direct 16+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5 GbE LAN, Rear USB 3.2 Gen 2×2 Type-C, Q-Flash Plus. It is supported with LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
The SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. The Gigabyte Z690 UD DDR4 comes with 3 years of warranty.
| Brand | Gigabyte |
|---|---|
| Processor Brand | INTEL |
| Generation | 12th |
| RAM Type | DDR4 |
| Bus Speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
| RAM Slot | 4 |
| HDMI Port | No |
| M.2/NVMe Expention slot | 3 |
